topology_optimization

"""SIMP topology optimization of a simply supported beam to half its material.

`mbb_conditions`, `solve_solid`, and `optimize` each state and solve one problem; `run`
calls them and returns a `TopologyStudy` of plain results. Nothing here draws:
`figures.py` does that from the study, and this file is what the gallery shows.
"""
from dataclasses import dataclass

import numpy as np

from fem.analysis.design import DesignHistory, DesignOptimizer, SIMPModel, calculate_smoothing_matrix
from fem.boundary import Dirichlet, Neumann
from fem.conditions import Conditions
from fem.mesh.mesh import Mesh
from fem.physics.equations import LinearElastic
from fem.post.solution import ElasticSolution
from fem.regions import in_box, intersect, on_plane

E, NU = 200.0, 0.4
equation = LinearElastic(E, NU)


def mbb_conditions(mesh) -> Conditions:

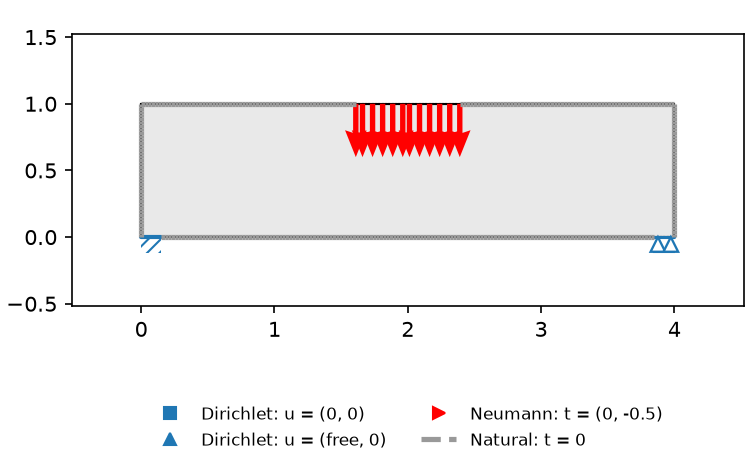

    """A simply supported (MBB) beam, the classic topology-optimization test: pinned at
    one bottom corner, a vertical roller at the other, a downward load at the top
    centre."""
    w = np.max(mesh.vertices[:, 0])
    h = np.max(mesh.vertices[:, 1])
    bottom, top = on_plane(1, 0.0), on_plane(1, h)
    return Conditions(
        Dirichlet(intersect(bottom, in_box([None, None], [0.04 * w, None])), [0, 0]),
        Dirichlet(intersect(bottom, in_box([0.96 * w, None], [None, None])), [None, 0]),
        # A load over the central fifth of the top rather than a point, so it lands on a
        # boundary edge on any mesh, including the tiny smoke-test one.
        Neumann(intersect(top, in_box([0.4 * w, None], [0.6 * w, None])), [0, -0.5]),
    )


def solve_solid(mesh, bc) -> ElasticSolution:
    """The solid block: 100% material, the baseline the optimized one is measured
    against."""
    return equation.problem(mesh, bc).solve()


def optimize(mesh, bc, iters, smoothing_radius=0.05) -> tuple[DesignOptimizer, DesignHistory]:

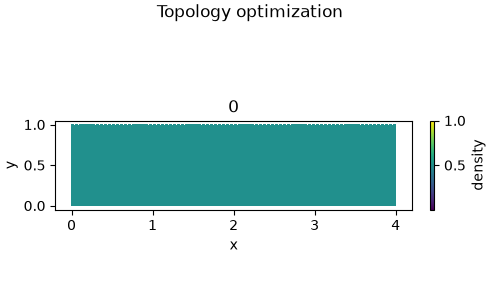

    """Where to put half the material. Compliance is u.f, the work the load does, so a
    lower value is a stiffer structure; SIMP minimizes it under the volume constraint.
    The smoothing radius is a physical length, so a finer mesh resolves the same
    structure rather than growing thinner members."""
    model = SIMPModel(equation.problem(mesh, bc),
                      sensitivity_filter=calculate_smoothing_matrix(mesh, smoothing_radius))
    design = DesignOptimizer(model, volume_frac=0.5, iters=iters, move=0.1)
    return design, design.run()


@dataclass
class TopologyStudy:
    """Everything `run` computed, for the figures and the summary to read."""
    mesh: Mesh
    bc: Conditions
    solid: ElasticSolution
    optimized: ElasticSolution
    history: DesignHistory

    @property
    def aspect(self) -> float:
        return float(np.max(self.mesh.vertices[:, 0]) / np.max(self.mesh.vertices[:, 1]))

    @property
    def compliance_solid(self) -> float:
        return float(self.solid.compliance.sum())

    @property
    def compliance_opt(self) -> float:
        return float(self.history.objective[-1])

    @property
    def ratio(self) -> float:
        """The optimized beam's compliance as a fraction of the solid one's."""
        return self.compliance_opt / self.compliance_solid


def run(mesh, iters=60) -> TopologyStudy:
    """Solve the solid beam, then optimize half its material away."""
    bc = mbb_conditions(mesh)
    solid = solve_solid(mesh, bc)
    design, history = optimize(mesh, bc, iters)
    assert design.solution is not None
    return TopologyStudy(mesh, bc, solid, design.solution, history)
