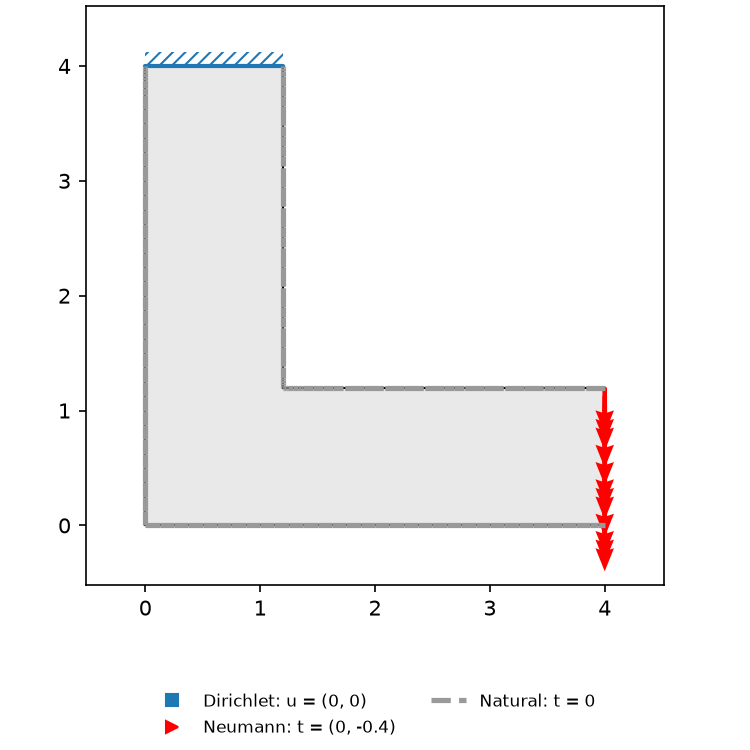

The stress at an L-bracket's inner corner, sharp and filleted, as the mesh refines into it.
uv run python examples/cli.py run bracket

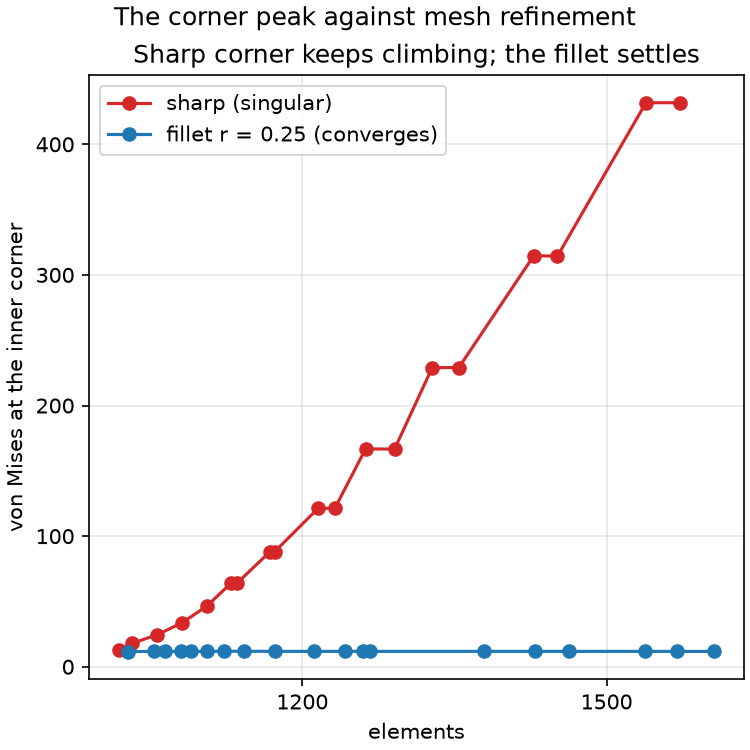

corner von Mises peak (sharp) 431.8 over 1583 elements, still climbing corner von Mises peak (fillet) 11.8 over 1623 elements, converged reduction from the fillet 97%
The functions that pose and solve the problem. The figures are below the fold.
"""The stress at an L-bracket's inner corner, sharp and filleted, as the mesh refines into it. At the re-entrant corner the exact elastic stress is infinite (it grows like r^(-0.46) into the corner), so no mesh resolves it and the computed peak keeps climbing under refinement. A fillet removes the singularity and the peak settles. `refine_and_track` follows one bracket through that refinement; `run` does it for both and returns a `BracketStudy` of plain results. Nothing here draws: `figures.py` does that from the `BracketStudy`, and this file is what the gallery shows. """ from dataclasses import dataclass import numpy as np from fem.analysis.estimators import RecoveryEstimator from fem.boundary import Dirichlet, Neumann from fem.conditions import Conditions from fem.elements import IsoparametricTriangleElement, QuadraticTriangleElement from fem.mesh.curves import Arc, Line from fem.mesh.mesh import Mesh from fem.mesh.outline import Outline from fem.mesh.refinement import RedGreenRefiner from fem.physics.equations import LinearElastic from fem.post.solution import ElasticSolution from fem.regions import on_plane def l_bracket_outline(arm: float = 4.0, width: float = 1.2, fillet_radius: float = 0.0) -> Outline: """An L-shaped bracket, with an optional fillet at the inner corner. Two limbs of thickness `width` and length `arm`: the vertical one up the left edge, the horizontal one along the bottom, meeting at a re-entrant (inner) corner at `(width, width)`. A sharp corner there is a stress singularity; `fillet_radius > 0` rounds it with a concave `Arc`, so an isoparametric solve reads a true circular fillet. Clamp the top of the vertical limb (`on_plane(1, arm)`) and load the tip of the horizontal one (`on_plane(0, arm)`); the concentration then sits at the inner corner. """ corners = [np.array(p) for p in [(0.0, 0.0), (arm, 0.0), (arm, width)]] pieces = [Line(corners[0], corners[1]), Line(corners[1], corners[2])] if fillet_radius > 0: # Round the re-entrant corner: an arc of radius r centred at (width+r, width+r), # bulging into the notch to add material. It runs from A = (width+r, width) on the # bottom limb's top edge (theta = 3pi/2) to B = (width, width+r) on the vertical # limb's right edge (theta = pi), replacing the sharp point between them: the # arc reversed, since the outline is traced clockwise through it. r = fillet_radius fillet = Arc([width + r, width + r], r, np.pi, 1.5 * np.pi).reversed() pieces += [Line(corners[2], fillet.start), fillet] inner_end = fillet.end else: pieces.append(Line(corners[2], [width, width])) inner_end = np.array([width, width]) top = [np.array(p) for p in [(width, arm), (0.0, arm)]] pieces += [Line(inner_end, top[0]), Line(top[0], top[1]), Line(top[1], corners[0])] return Outline([pieces]) def make_bc(arm, traction) -> Conditions: """Clamped at the top of the upright limb, pulled down at the horizontal tip.""" return Conditions( Dirichlet(on_plane(1, arm), [0, 0]), Neumann(on_plane(0, arm), [0, -traction]), ) def corner_peak(solution: ElasticSolution, width) -> float: """The von Mises peak near the inner corner, clear of the clamp's own concentration at the top. Read from the same L2-recovered nodal field the panels draw.""" corner = np.array([width, width]) nodal_vm = solution.nodal_von_mises(method='l2') near = np.linalg.norm(solution.space.node_coords - corner, axis=1) < 0.8 * width return float(nodal_vm[near].max()) @dataclass class Bracket: """One bracket after refinement, and the corner peak at every round.""" mesh: Mesh solution: ElasticSolution sizes: np.ndarray # element count at each round peaks: np.ndarray # corner von Mises at each round @property def peak(self) -> float: return float(self.peaks[-1]) def refine_and_track(fillet, element_type, equation, bc, arm, width, min_angle, max_area_fraction, n_rounds, refine_fraction) -> Bracket: """Adaptively refine one bracket, recording the corner peak each round. `AdaptiveRefinement`'s loop, unrolled so the corner peak can be read off every intermediate mesh. `element_type` is the straight quadratic triangle for the sharp corner and the isoparametric one for the fillet, so the arc is a true circle rather than a polygon. The recovery estimator drives refinement (it reads the curved fillet's flux correctly). """ outline = l_bracket_outline(arm, width, fillet_radius=fillet) mesh = outline.mesh(min_angle=min_angle, max_area_fraction=max_area_fraction) def solve(m): problem = equation.problem(m, bc, element_type=element_type) return problem, problem.solve() refiner = RedGreenRefiner(mesh) estimator = RecoveryEstimator() problem, solution = solve(mesh) sizes, peaks = [], [] for _ in range(n_rounds): sizes.append(len(mesh.elements)) peaks.append(corner_peak(solution, width)) residuals = estimator.estimate(problem, solution) refine_idxs = np.flatnonzero(residuals >= refine_fraction * residuals.max()) mesh = refiner.refine([int(i) for i in refine_idxs]) problem, solution = solve(mesh) sizes.append(len(mesh.elements)) peaks.append(corner_peak(solution, width)) return Bracket(mesh, solution, np.array(sizes), np.array(peaks)) @dataclass class BracketStudy: """Everything `run` computed, for the figures and the summary to read.""" fillet_radius: float bc: Conditions sharp: Bracket rounded: Bracket @property def reduction(self) -> float: """How much the fillet cuts the corner peak, in percent, at the final meshes.""" return 100 * (1 - self.rounded.peak / self.sharp.peak) def run(arm=4.0, width=1.2, fillet_radius=0.25, traction=0.4, E=300.0, nu=0.3, min_angle=28, max_area_fraction=0.0015, n_rounds=18, refine_fraction=0.9) -> BracketStudy: """Refine the sharp and the filleted bracket into their corners.""" equation = LinearElastic(E, nu) bc = make_bc(arm, traction) refine = (arm, width, min_angle, max_area_fraction, n_rounds, refine_fraction) sharp = refine_and_track(0.0, QuadraticTriangleElement, equation, bc, *refine) rounded = refine_and_track(fillet_radius, IsoparametricTriangleElement, equation, bc, *refine) return BracketStudy(fillet_radius, bc, sharp, rounded)
"""The figures and summary of the L-bracket demo, drawn from a `BracketStudy`.""" import numpy as np from demo_registry import Demo, DemoResult, Figure from demos._charts import conditions_figure, tidy_log_axis from demos.bracket import physics from demos.bracket.physics import BracketStudy, run from fem.plot.plotter import Plotter def _fields_figure(s: BracketStudy) -> Figure: # Independent colour scales: the sharp peak would wash the fillet's to a flat colour. fields = Plotter(1, 2, title='An L-bracket under a tip load') for i, (name, bracket) in enumerate((('Sharp corner', s.sharp), (f'Fillet r = {s.fillet_radius:g}', s.rounded))): mesh, solution = bracket.mesh, bracket.solution # Passing the solution draws the P2 field on its tessellation; warp=True deforms it. fields.plot(solution, solution.nodal_von_mises(method='l2'), mode='colored', idx=(0, i), warp=True, label='von Mises stress', title=f'{name}\n{len(mesh.elements)} elements, ' f'corner peak {bracket.peak:.0f}') # Support glyphs at the deformed vertex positions, so the load follows the tip. fields.overlay_supports(mesh, s.bc, idx=(0, i), coords=solution.deformed_mesh().vertices) return Figure( fields, 'The same bracket, clamped at the top and pulled down at the horizontal ' 'tip, with a sharp inner corner (left) and a filleted one (right). Stress ' 'crowds into the re-entrant corner; the fillet spreads it over a radius and ' f'cuts the peak by about {s.reduction:.0f}% at this resolution. The colour ' 'scales are independent, since the sharp peak would otherwise flatten the ' "fillet's own concentration to nothing.", 'fields', thumbnail=True) def _singularity_figure(s: BracketStudy) -> Figure: sweep = Plotter(1, 1, title='The corner peak against mesh refinement') ax = sweep.chart_ax(xlabel='elements', ylabel='von Mises at the inner corner') ax.semilogx(s.sharp.sizes, s.sharp.peaks, 'o-', color='tab:red', label='sharp (singular)') ax.semilogx(s.rounded.sizes, s.rounded.peaks, 'o-', color='tab:blue', label=f'fillet r = {s.fillet_radius:g} (converges)') ax.set_title('Sharp corner keeps climbing; the fillet settles') # The element counts span under a decade, where a log axis crowds its minor labels. ax.grid(True, which='both', alpha=0.3) sizes_all = np.concatenate([s.sharp.sizes, s.rounded.sizes]) mantissas = np.array([1, 1.2, 1.5, 1.8, 2, 2.5, 3, 4, 5, 7]) nice = np.concatenate([mantissas * 10**k for k in (2, 3, 4)]) ticks = nice[(nice >= sizes_all.min()) & (nice <= sizes_all.max())] if len(ticks) >= 2: tidy_log_axis(ax, ticks) ax.legend() return Figure( sweep, 'The corner von Mises peak as the mesh is adaptively refined into the ' 'corner. The sharp corner is a stress singularity, so its peak climbs without ' 'bound; the "stress" there is a property of the mesh, not of the part. The ' 'fillet removes the singularity, and its peak settles on a finite value. This ' 'is why real parts round their inner corners.', 'singularity') def _conditions_figure(s: BracketStudy) -> Figure: return conditions_figure( s.sharp.mesh, s.bc, 'The upright limb is clamped at the top; a downward traction pulls the ' 'horizontal tip. Everything else, the inner corner included, is ' 'traction-free.', panel_aspect=1.0) def _summary(s: BracketStudy) -> str: return (f'corner von Mises peak (sharp) {s.sharp.peak:.1f} ' f'over {s.sharp.sizes[-1]} elements, still climbing\n' f'corner von Mises peak (fillet) {s.rounded.peak:.1f} ' f'over {s.rounded.sizes[-1]} elements, converged\n' f'reduction from the fillet {s.reduction:.0f}%') def demo(**kwargs) -> DemoResult: """The stress at an L-bracket's inner corner, sharp and filleted, as the mesh refines into it. Solved on quadratic (P2) elements: the sharp bracket on straight `QuadraticTriangleElement`, the filleted one on `IsoparametricTriangleElement` so the arc is a true circle rather than a polygon. The recovery estimator drives refinement (it reads the curved fillet's flux correctly), and the peak is read from the recovered nodal von Mises.""" s = run(**kwargs) return DemoResult([ _fields_figure(s), _singularity_figure(s), _conditions_figure(s), ], text=_summary(s)) # Builds its own L-brackets (sharp and filleted) from outlines, so it takes no domain. DEMO = Demo('bracket', demo, section='Solids & structures', smoke_kwargs={'max_area_fraction': 0.08, 'n_rounds': 2}, show_source=physics)
